Troax Panel

Troax Panels
Troax

PANELS

Troax's panels are tested togehter with the posts and fixings to withstand impacts from 309 joules up to 6,000 joules. The panels are made of high quality steel/polycarbonate and produced in automated production process, which ensures high and consistent product quality.

Rating

Brand

Troax

Troax offers a wide range of panels for their machine guarding systems that provide optimal safety and security in various industrial settings. The panels are made of high-quality steel and come in various sizes and designs to fit the specific requirements of different machines and applications.
The panels are easy to install and are designed to withstand harsh environmental conditions. They also offer high visibility, allowing workers to easily monitor the machines' operations. Additionally, the panels can be customized to fit unique machine configurations, and Troax offers a variety of accessories to enhance their functionality, such as doors, locks, and sliding systems.
Overall, Troax's panels provide an effective solution for machine guarding, ensuring worker safety, preventing accidents, and minimizing the risk of damage to machines and equipment.

Art. Nr Components Height Width Mesh size Colour Vertical Tube Safety Distance
20020601 Panel ST20 2050x200 2050 mm 200 mm 20x100 mm Powder Coating 19x19 mm 120 mm
20020621 Panel ST20 1250x200 1250 mm 200 mm 20x100 mm Powder Coating 19x19 mm 120 mm
20020641 Panel ST20 2350X200 2350 mm 200 mm 20x100 mm Powder Coating 19x19 mm 120 mm
20030601 Panel ST20 2050x300 2050 mm 300 mm 20x100 mm Powder Coating 19x19 mm 120 mm
20030621 Panel ST20 1250x300 1250 mm 300 mm 20x100 mm Powder Coating 19x19 mm 120 mm
20030641 Panel ST20 2350X300 2350 mm 300 mm 20x100 mm Powder Coating 19x19 mm 120 mm
20050601 Panel ST20 2050x500 2050 mm 500 mm 20x100 mm Powder Coating 19x19 mm 120 mm
20050621 Panel ST20 1250x500 1250 mm 500 mm 20x100 mm Powder Coating 19x19 mm 120 mm
20050641 Panel ST20 2350X500 2350 mm 500 mm 20x100 mm Powder Coating 19x19 mm 120 mm
20070601 Panel ST20 2050x700 2050 mm 700 mm 20x100 mm Powder Coating 19x19 mm 120 mm
20070621 Panel ST20 1250x700 1250 mm 700 mm 20x100 mm Powder Coating 19x19 mm 120 mm
20070641 Panel ST20 2350X700 2350 mm 700 mm 20x100 mm Powder Coating 19x19 mm 120 mm
20080601 Panel ST20 2050x800 2050 mm 800 mm 20x100 mm Powder Coating 19x19 mm 120 mm
20080621 Panel ST20 1250x800 1250 mm 800 mm 20x100 mm Powder Coating 19x19 mm 120 mm
20080641 Panel ST20 2350X800 2350 mm 800 mm 20x100 mm Powder Coating 19x19 mm 120 mm
20100601 Panel ST20 2050x1000 2050 mm 1000 mm 20x100 mm Powder Coating 19x19 mm 120 mm
20100621 Panel ST20 1250x1000 1250 mm 1000 mm 20x100 mm Powder Coating 19x19 mm 120 mm
20100641 Panel ST20 2350X1000 2350 mm 1000 mm 20x100 mm Powder Coating 19x19 mm 120 mm
20120601 Panel ST20 2050x1200 2050 mm 1200 mm 20x100 mm Powder Coating 19x19 mm 120 mm
20120621 Panel ST20 1250x1200 1250 mm 1200 mm 20x100 mm Powder Coating 19x19 mm 120 mm
20120641 Panel ST20 2350X1200 2350 mm 1200 mm 20x100 mm Powder Coating 19x19 mm 120 mm
20150601 Panel ST20 2050x1500 2050 mm 1500 mm 20x100 mm Powder Coating 19x19 mm 120 mm
20150621 Panel ST20 1250x1500 1250 mm 1500 mm 20x100 mm Powder Coating 19x19 mm 120 mm
20150641 Panel ST20 2350X1500 2350 mm 1500 mm 20x100 mm Powder Coating 19x19 mm 120 mm

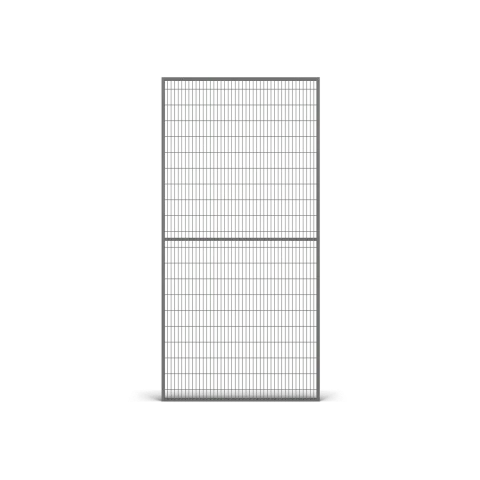

Panel ST30

Panel ST30

The ST30 panel is a stronger mesh panel, suitable for heavy industrial use in a high risk environment.

Panel ST20

Panel ST20

The ST20 mesh panel is the most commonly used machine guarding panel that is suitable for a range of applications.

Panel ST PC

Panel ST PC

The ST PC polycarbonate panel is suitable for applications where you require full visibility.

Panel Full Steel

Panel Full Steel

The URSP sheet metal panel offers good protection for areas with welding or splash risk.

Get Latest Price

Submit your Requirements

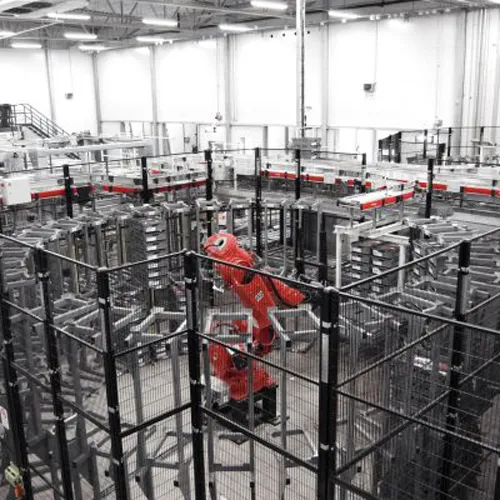

Installation gallery
