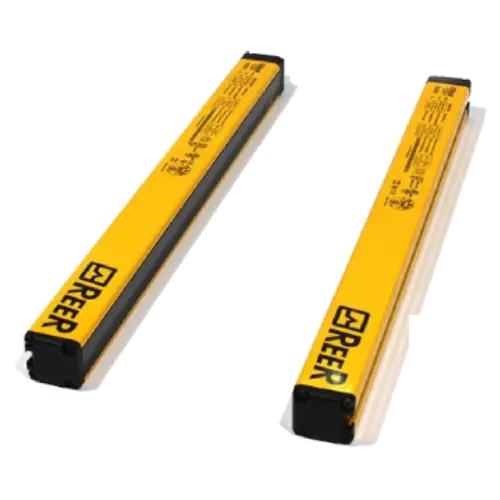

Safety Light curtains are electro sensitive devices using one or more light beams, emitted by an Emitter and received by a Receiver, to create an intangible controlled area.
Defines the self-monitoring and safety principles contained in the device; it must be chosen as a function of the risk level characterising the machine.This is the height protected by the light curtain. If it is positioned horizontally, this value shows the depth of the protected zone.
This is the maximum working distance that may exist between the emitter and the receiver.This is the time it takes for the safety light curtain to transmit the alarm signal from the time the protected zone is interrupted.
The resolution of a light curtain is the minimum size of an object that, placed into the controlled area, will obscure the controlled zone and hence stop the hazardous movement of the machine.
| Model | Detection | Protected Height | Resolution | Safety Level | Cross Section | Range | Ip Rating |
|---|---|---|---|---|---|---|---|
| EOS4 | Finger, Hand, Body, Access control | 160mm - 2260mm | 14 20 30 40 50 90 MULTI-BEAM | Type 4 - PL e - SIL 3 - SILCL 3 - Cat. 4 | 30 x 28 mm | 6mm - 20mm | IP65 IP67 IP69K |
| Admiral | Finger, Hand, Body, Access control | 160mm - 2260mm | 14 20 30 40 50 90 MULTI-BEAM | Type 4 - PL e - SIL 3 - SILCL 3 - Cat. 4 | 45 x 35 mm | 18mm - 80mm | IP65 IP67 |
| Safegate | Finger, Hand, Body, Access control | 310 mm - 2260 mm | 14 30 40 MULTI-BEAM | Type 4 - PL e - SIL 3 - SILCL 3 - Cat. 4 | 50 x 55 mm | 8 mm - 80 mm | IP65 IP67 |
| Janus | Finger, Hand, Body, Access control | 310 mm - 1810 mm | 30 40 90 MULTI-BEAM | Type 4 - PL e - SIL 3 - SILCL 3 - Cat. 4 | 50 x 60 mm | 6 mm - 80 mm | IP65 IP67 |
| EOS2 | Finger, Hand, Body, Access control | 160 mm - 2260 mm | 20 30 40 50 90 MULTI-BEAM | Type 2 - PL c - SIL 1 - SILCL 1 - Cat. 2 | 30 x 28 mm | 6 mm - 20 mm | IP65 IP67 IP69K |
| Vision | Finger, Hand, Body, Access control | 160 mm - 1810 mm | 20 30 40 50 90 MULTI-BEAM | Type 2 - PL c - SIL 1 - SILCL 1 - Cat. 2 | 45 x 35 mm | 6 mm - 60 mm | IP65 IP67 |
