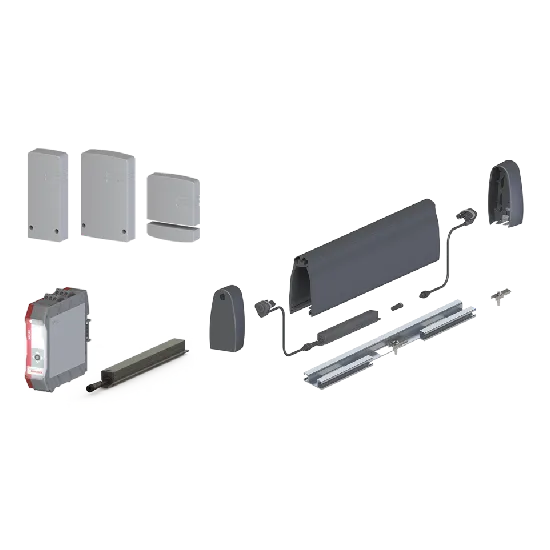

BBC Bircher Wireless Safety Edges (ExpertSystem XRF) combine a pressure-sensitive safety edge with wireless radio signal transmission, removing the need for a trailing cable to the moving door or gate leaf.
Built on BBC Bircher's modular ExpertSystem platform with self-assembly, pluggable connections and an optional quick-mounting system, the wireless safety edge transmits the switching signal over a 868 MHz radio link with a range of up to 100 metres under optimal conditions. When the edge contacts a person or obstacle, the transmitter instantly signals the receiver to stop or reverse the drive. The innovative profile design offers a large switch-active sensor surface, a short activation distance and high sensitivity to low actuating forces, and the system can be configured for safety category PLc Cat. 2 or PLd Cat. 3 in accordance with EN ISO 13849-1. This makes it the practical choice for sliding gates, swing gates and fast folding doors where running a control cable to the moving leaf is difficult or unreliable.
| Parameter | Value |
|---|---|
| Type | Wireless pressure-sensitive safety edge (ExpertSystem XRF) |
| Signal transmission | Wireless radio link at 868 MHz |
| Range | Up to 100 m under optimal conditions |
| Detection principle | Contact / pressure closure with short activation distance |
| Safety category | Selectable PLc Cat. 2 or PLd Cat. 3 (EN ISO 13849-1) |
| Power supply | 12-36 V AC/DC or 3.6 V lithium battery |
| Battery life | Typically 7 years (integrated transmitter) |
| Power consumption | Max. 1 W |
| Protection class | IP65 (receiver XRF-RD: IP20) |
| Profile heights | Four profile heights available |
| Approvals | EN ISO 13849-1, EN 300 220, EN 301 489 |
| Brand | BBC Bircher Smart Access |
