The PSENsgate / PSENmgate safety gate system combines safe guard locking with built-in control elements in one compact unit. With flexible configurations, high manipulation protection, and support for personnel protection up to PL e, Cat. 4, it provides a versatile and space-saving safety solution for all types of safety gates.

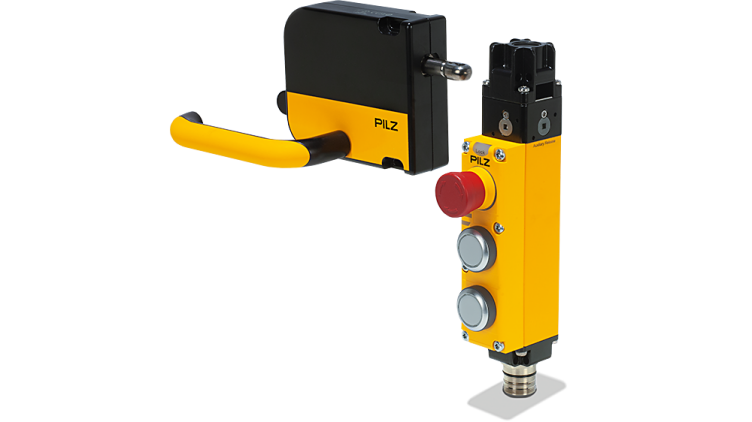

The PSENsgate / PSENmgate safety gate system integrates multiple safety and control functions into a single, efficient unit. Designed to combine safe guard locking with essential control elements such as pushbuttons, key switches, illuminated buttons, emergency stop, escape release, and compatible handles, this system offers high flexibility for a wide range of safety gate applications.
Building on the proven performance of PSENsgate, the newly optimised PSENmgate delivers even greater functionality in a more compact form. By combining the advanced locking capabilities of PSENmlock with the control elements of the PITgatebox, PSENmgate reduces installation space by 43% compared to its predecessor—ideal for space-constrained machine designs. Note that PSENsgate will be discontinued in May 2026.

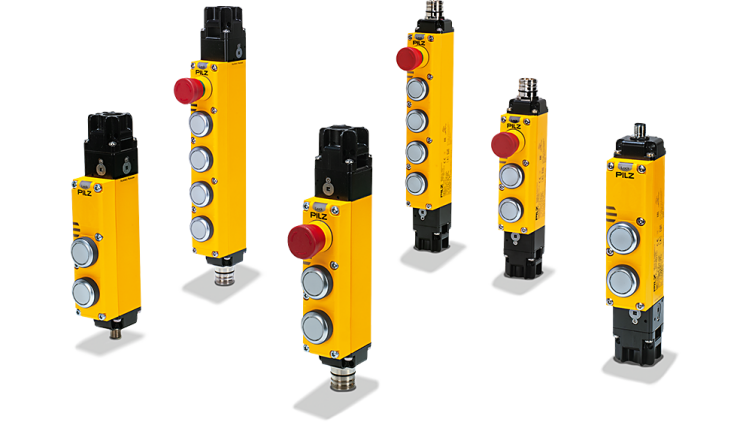

PSENmgate is available in short and long housing versions, offering multiple configuration options and the choice of upward or downward cable outlet to support different installation layouts. The long housing version enables up to four integrated control elements plus an emergency stop, providing an all-in-one interface directly on the safety gate. Optimised internal wiring and streamlined cable routing reduce installation time and improve overall efficiency.
Designed for robust industrial use, the system supports personnel protection up to PL e, Cat. 4 (EN ISO 13849-1) and features strong manipulation protection to ensure secure operation. With a holding force of up to 7500 N, bolt-breakage monitoring, IP65 protection, and user-friendly diagnostics via 4 LED indicators, PSENmgate delivers high safety performance while simplifying daily operation and maintenance.
| Additional Information – Safety Gate System PSENsgate / PSENmgate | |
|---|---|
| Integrated Functions | Combines safety gate monitoring, safe guard locking, and control elements in one compact system. |
| Control Elements Options | Supports pushbuttons, key switches, illuminated pushbuttons, emergency stop, escape release, and compatible handles. |
| New Generation PSENmgate | 43% smaller than PSENsgate; integrates PSENmlock safety locking with PITgatebox control elements. |
| Space-Saving Design | Compact size: 40×65×238 mm (short housing), 40×94×327 mm (long housing) for tight installation areas. |
| Flexible Cable Routing | Available with upward or downward cable outlet to match the installation layout. |
| Long Housing Version | Includes up to four control elements plus an emergency stop for expanded functionality at the gate. |
| Ease of Installation | Single integrated system reduces wiring, speeds up installation, and simplifies commissioning. |
| Safety Certification | Personnel protection up to PL e, Cat. 4 according to EN ISO 13849-1. |
| Manipulation Protection | High resistance to tampering ensures stable and secure machine operation. |
| Robust Holding Force | Holding force up to 7500 N with bolt-breakage monitoring for increased reliability. |
| Diagnostic Features | Equipped with 4 LEDs and diagnostic output for clear status indication and troubleshooting. |
| Protection Class | Rated IP65 for industrial environments requiring dust and water resistance. |
| Energy Efficiency | Optimised system design reduces power consumption while maintaining high safety performance. |
| Product Phase-Out | PSENsgate will be discontinued in May 2026; PSENmgate is the recommended successor. |
